EYP-73/100
EYP-73/100 Carrousel Splitting Foam Cutting Machine
Application
EYP carrousel splitting foam cutting machine is used for continue horizontal cutting the several foam block which length less than 4.5m to 2mm-150mm thickness foam sheets. These foam sheets are for produce mattress, sofa mattress, clothing, bags or other foam products.

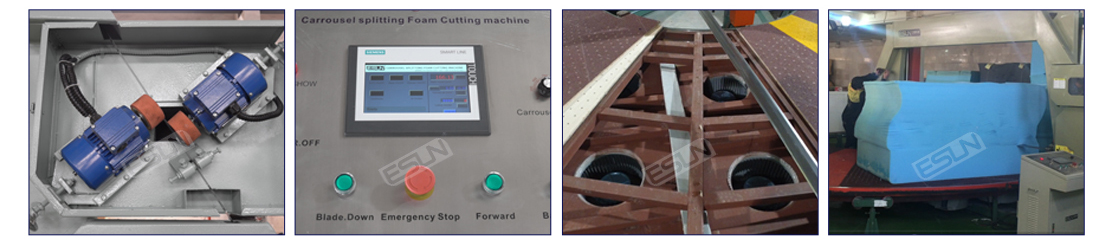

● Precise and high efficiency cutting tools
● High precision digital thickness control device
● Digit control servo motor(option)
● Advanced inverter timing controlled techniques
● Special designed carrousel cutting table
● High quality PLC and touch screen
● Air suction system (option)
Video
Technical data at a glance:
Model | EYP-73 | EYP-73E | EYP-100 | EYP-100E |
Cutting foam size | W1.5xL2xH1.2m(5pcs) | W1.5xL2xH1.2m(8pcs) | ||
Max cutting foam size | W2.15xL3xH1.2(3pcs) | W2.15xL4.5xH1.2(3pcs) | ||
Worktable turning speed | 0-3r/min | 0-2r/min | ||
Work table dia (Φ) | Φ7.3m | Φ10.5m | ||
Cutting thickness | 2-150mm | |||
Cutting precision(mm) | +/- 0.2 | |||
Control type | Button+Counter | PLC+Touch Screen | Button+Counter | PLC+Touch Screen |
Total power | 8.84kw | 10.24kw | ||
Cutting blade size | 10000x30x0.45mm | 10250x30x0.45 mm |
