ESQ-94C-CS
Panel Cutting with Conveyer Machine
Special Function
● Designed to work with ESQ-94C-2500, ESQ-3000, ESQ-3200, ESQ-3500, quilting machine or on its own

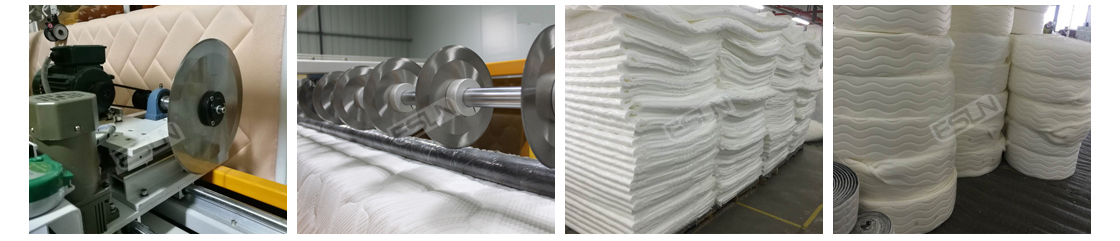

● Machine is capable of cutting quilted panels, borders, trimming sides
● Encoder setting of panel lengths for your own dimension cutting
● PLC control and touch screen for easy operation and convenient maintain
● Air sharpening device to maintain cutting blades, air material pressing system and air material pulling system to press and pull material automatically
● Infrared setting of panel lengths for accurate panel cutting, safe in operation
● Reliable border feed and cutting mechanism
● Conveyor belt mechanism is convenient for assembly line operation
● Stable, vibration free operation with low noise and high efficiency
● Modern machine type design lead the industry
Video
Technical data at a glance:
Model | ESQ-94C-CS |
Board length(mm) | 2200 |
Cutting thickness(mm) | 3-80 |
Cutting width(mm) | 100-2500 |
Output speed(mm/min) | 7000 |
Motor power(kw) | 3 |
Pressure(mpa) | 0.4-0.8 |
