ESQ-3200
ESQ-3200 High Speed Computerized Multi needle Chain Stitch Quilting Machine
Application

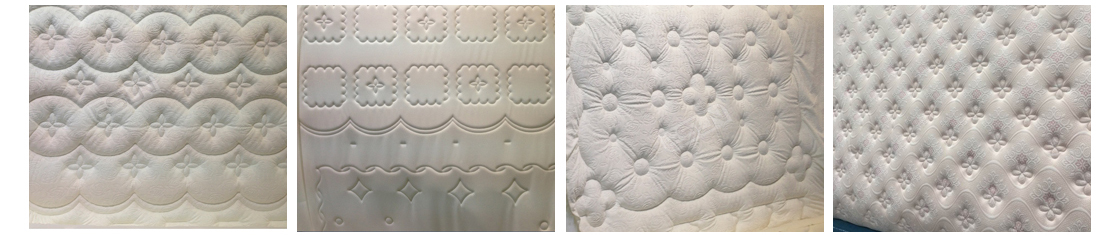

The machine is mainly used for producing mattress fabric, bed cover, quilt, sleeping bag and other textile decoration products.It includes more than 2000 models of design patterns which cover 180°standard pattern and 360°Tack&Jump pattern

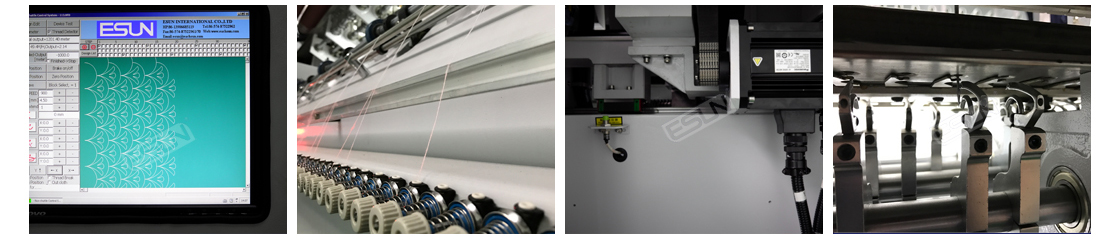

● Main principal axis and x,y axis servo motor driving
● Precision and stable rack linear guideway
● Anti-vibration fabric hopper and steadiness balancing system
● Fabric pneumatic pressure device
● Automatic fabric thickness adjusting device
● Fabric draw-out device
● Powerful control system
● Multi mechanical structure improvements
● Well safety protection
Video
Technical data at a glance:
Model | ESQ-3200 |
Quilt width | 2450mm |
Rotation speed | 600-1200RPM |
Production speed | 80-280m/h |
Needle size | 130/21, 140/22, 160/23,180/24 |
Needle arrangement | (50.8,76.2,127) (76.2,76.2,152.4) |
Max horizontal movement | 450mm |
Needle space | 25.4mm |
Stitch | 2-7 mm |
Motor power | 10 KW |
Quilting thickness | ≤80mm |
